Multi-flange Wafer Pattern Butterfly Valve – Stainless Steel Disc – PTFE Liner

ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, Stainless Steel Disc, PTFE Liner, Locking Lever Operation 1½” to 6”, Gearbox Operation 8” to 12”, Complies with 97/23/CE (PED) Directive CE 1115.

Flange Suitability:
1½” & 2″ PN6/10/16/ANSI 150/Table D & Table E
2½” PN6/10/16 & ANSI 150
3″ to 14″ PN6/10/16/ANSI 150/Table D & Table E
16″ PN6/10/16 & ANSI 150
18″ to 24″ PN10 or PN16 (must be specified at time of order)

Rated PN16, Temperature -10°C to 120°C.

Note: Gearbox operation available for all sizes, please enquire.

*NB: Gearbox operation recommended for 6″ valve due to forces required to close this size; see LV9949.

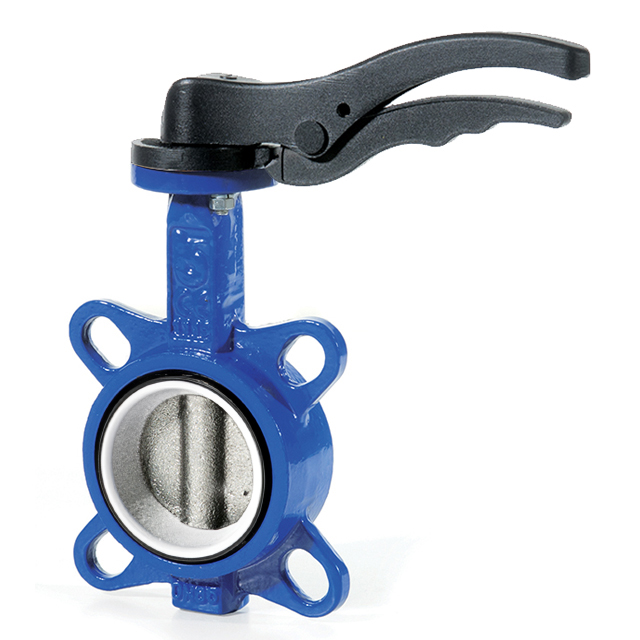

Issue 18 Note: The image used in our catalogue is of a 3″ valve and features 8 locating lugs, other sizes only have 4 locating lugs, as shown here.
