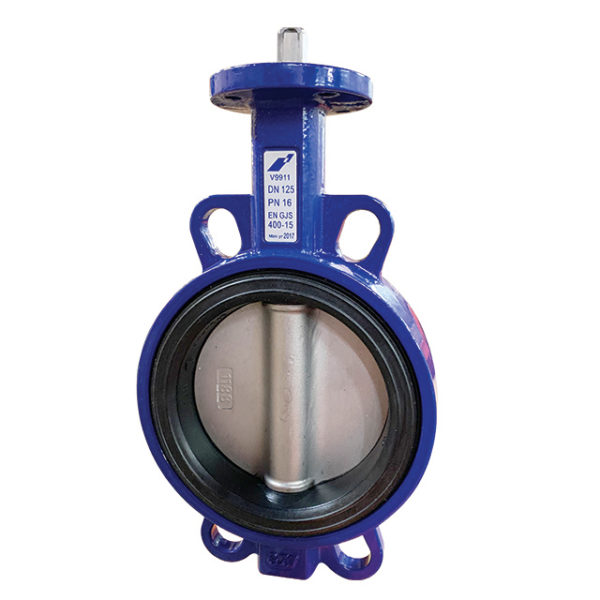

Ductile Iron Butterfly Valve – Electrically Actuated – LV 9411
LV9911 Butterfly Valve, Wafer to Suit PN6/10/16, ANSI 150, Table D/E 1″ to 16″, PN16 18″ to 24″. ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, 316 Stainless Steel Disc, EPDM Liner. Complies with 97/23/CE (PED) Directive CE 1115.
Rated PN16 1″ to 16″, PN10 18″ to 24″, Temperature -10ºC to 120ºC.
Fitted with Electric Actuator.
New to Leengate? Apply for an account
Additional information
| Fitting | |
|---|---|
| Manufacturer | |
| Material | |
| Size (in or mm) | 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4", 5", 6", 8", 10", 12", 14", 16", 18", 20", 24" |
| Electric Actuator | Flowinn Aluminium On/Off, Flowinn Aluminium Modulating, Valbia Aluminium On/Off, Valbia Aluminium Modulating, Valbia Aluminium Battery Back Up, Valbia Technopolymer On/Off, Valbia Technopolymer Modulating, Belimo Spring Return Electric |
